polycarbonate Diffuser Sheet
Home / Products / Diffuer Sheet/Film / polycarbonate Diffuser Sheet / Polycarbonate Diffuser Film
  • Pc Diffuser Film

  • Polycarbonate Diffuser Film

  • Polycarbonate Diffuser Film

  • Polycarbonate Diffuser Film

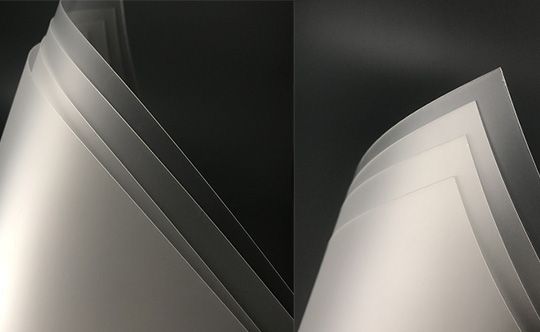

Polycarbonate Diffuser Film

1, Light Transmission:Normally 80%、770% can tailor to customer's requirements

2, Appearance: Two side matte&one side matte;

3, Outstanding LED Diffusion Ability

4, Easy To Fabricate

5, Superior impact strength and toughness

DESCRIPTION

Excellent Selection Of 100% Virgin Material & Unique Formula

Excellent Selection Of 100% Virgin Material & Unique Formula

Base on the optical theory, the PC diffusion sheet is produced with Optical grade PC raw material and scientific formula processing, the light can be reflected and refracted and scattering in the chemistry particles and resin continuously to achieve the best light transmission and excellent Led hiding ability and Increases light uniformity throughout the lighting diffuser

Excellent Optic Diffusion Performance & Efficiency

LED Lighting Diffuser enable high efficiency extraction of light from a luminaire without sacrificing performance. Transmission well in excess of 90% is typical, and luminaire dependent efficiency can be even higher.

Excellent Optic Diffusion Performance & Efficiency
Strong illuminant Hiding Ability

Strong illuminant Hiding Ability

Lighting diffusers offer outstanding hiding of LED and fluorescent light sources, with excellent color mixing. The diffusers solve the most difficult LED hiding problems while maintaining excellent efficiency.

Matte Surface

Two side matte surface specifically designed for LED panel light, downlight and so on, it features a unique combination of high light diffusion and high light transmission through a combination of optimized surface texture and advanced diffuser technologies.Increases light uniformity throughout the lighting diffuser;

Matte Surface

Application:


Our PC diffuser sheet being widely used for the panel light, Down light, linear light and  so on, that's because  our diffuser sheet with different levels of light diffusion to meet various fixture performance requirements. "Some designs, for example, may want a low level of diffusion to soften the edges of emitted light. Others may need more light diffusion to reduce direct glare. having these diffusion options allows the light fixture designer the ability to achieve the lighting qualities they desire for a specific fixture."


For side lighting Led Luminaire:


CodeThickness(mm)AppearanceRecommend Light
Guide Plate
Transmission
(Test by Transmission and haze Analyzer, ASTM D1003-61(1997)
Efficiency
in typical
LED
luminaire
Commends
JK-800.2-0.3two side matteScreen printed LGP80%>90%Highest efficiency, General defect hiding
JK-700.2-0.3two side matteScreen printed or Laser cutting LGP70%>85%Excellent efficiency, Increased defect hiding
